Designed with guests’ comfort in mind, Amana through-the-wall conditioners provide reliable, quiet operation for years of use. Their easily removable condenser top allows for quick and complete cleaning of outdoor coils, which helps lengthen the life of the compressor and other system-sealed components. Their 26″ built-in air conditioner utilizes a TTW design for flush-mount applications, and all units come with a 100% full factory run test to guarantee their units start the first time – every time.
- Wired thermostat capable to allow temperature control of the unit with our standard hardwired thermostats.
- Electronic touch pad with remote control
- High energy efficiency with models up to 10.4 EER saving you money when compared to lower EER models.
- Easily removable condenser top that allows for quick and complete cleaning of outdoor coils. This access for cleaning the outdoor coil enables easy removal of dirt and debris to help lengthen the life of the compressor and other system-sealed components. Remove six easy access screws and let the cleaning begin.
- Easy access slide out filter has a permanent polypropylene filter mesh that is easy to remove and clean.
- Accessory wall sleeve: PBWS01G-C is a solid-sided, insulated metal sleeve. It includes a stamped aluminum exterior grille with a weather-seal rear enclosure for installation without the chassis. The sleeve has a solid bottom for complete weather-tight installation. An optional PBWMFC can be used when a more permanent weather seal is needed for sleeves installed without the chassis.
- 100% full factory run test on all units for high reliability and dependability. Units start the first time—every time.
- Quiet operation designed with guest comfort in mind—providing reliable, quiet operation for years to come.
First-Year Limited Warranty: First-year parts and labor on parts and sealed system.
Five-Year Limited Warranty: Second through fifth year on sealed system. Limited parts warranty second through fifth year.

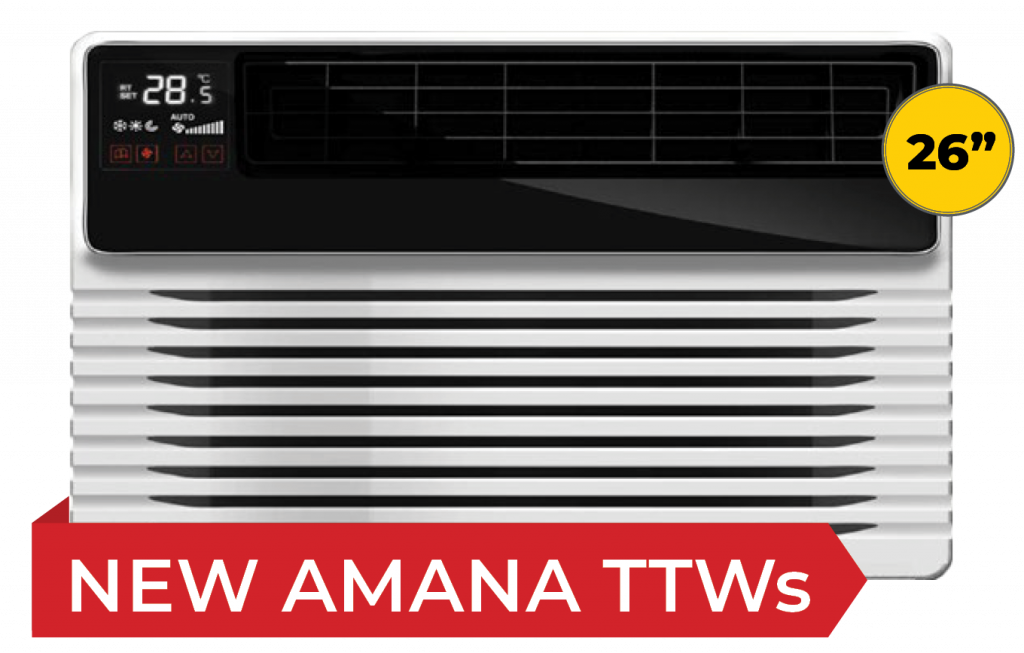

Amana 26″ Heat/Cool TTW Units
9,000 BTU
Model #: PBE093J35AA
Electric Heat
Voltage: 208/230 V
Amps: 20 A
12,000 BTU
Model #: PBE123J35AA
Electric Heat
Voltage: 208/230 V
Amps: 20 A
7,000 BTU
Model #: PBH073J35AA
Heat Pump
Voltage: 208/230 V
Amps: 20 A
9,000 BTU
Model #: PBH093J35AA
Heat Pump
Voltage: 208/230 V
115 V Available
Amps: 20 A
12,000 BTU
Model #: PBH113J35AA
Heat Pump
Voltage: 208/230 V
Amps: 20 A
Amana 26″ Cool Only TTW Units
9,000 BTU
Model #: PBC093J00AA
Cool Only
Voltage: 208/230 V
115 V Available
12,000 BTU
Model #: PBC123J00AA
Cool Only
Voltage: 208/230 V
115 V Available
Amana TTW Accessories
Model #: PBWS01A
Amana 26″ Wall Sleeve – 26″ x 15-5/8″
Insulated Aluminum, Includes Grille
Explore TTWs from Brands We Carry
Designed with guests’ comfort in mind, Amana through-the-wall conditioners provide reliable, quiet operation for years of use. Their easily removable condenser top allows for quick and complete cleaning of outdoor coils, which helps lengthen the life of the compressor and other system-sealed components. Their 26″ built-in air conditioner utilizes a TTW design for flush-mount applications, and all units come with a 100% full factory run test to guarantee their units start the first time – every time.
- 26″ Cool Only
- 26″ Electric Heat/Cool
- 26″ Heat Pump
GE has been providing built-in through-the-wall units since 1955. Known for its quality and reliability, GE TTWs come with Optical Line Protection (OLP), a filter reminder light when your unit needs cleaning, a hand-held controller for ease of operation and durable high-performance filters located in the front of the cabinet for easy access and cleaning. GE models come with 2-fan speeds, variable position thermostat to maintain desired temps and a 4-way air director that spreads the cool or warm air evenly throughout the room.
- 26” Cool Only
- 26” Electric Heat/Cool
- 24” Cool Only
- 24” Electric Heat/Cool
Comfort is a top priority for GREE 26″ Through-The-Wall. When you choose the GREE T2600 air conditioner, you receive a reliable product at a price that makes sense. In addition, the GREE models offer maximum efficiency that will help you reduce your electric bills. GREE Through-The-Walls are always a great fit no matter your business.
- 26″ Cool Only
- 26″ Electric Heat/Cool
- 26″ Heat Pump
The Frigidaire Through-The-Wall unit features Ready-Select Controls with the touch of a button, a Clean Filter Alert that notifies you when your filter needs cleaning, Effortless Restart that automatically resumes power when it is restored, an antibacterial Effortless Clean Filter, and Sleep Mode that gradually lowers the temperature during the evening hours.
Get a Quote
Need Assistance? Have a Question? Don’t Know Where to Start?
An Allied Sales Representative is ready to help. Fill out your information to be contacted by our team or call 1-800-991-8480.
Amana TTW Warranty
FIRST-YEAR COVERAGE (ENTIRE UNIT): We will repair or replace, free of charge (to include labor), any part of a unit that proves to be defective due to workmanship or materials within the first year after the date of purchase.
SECOND THROUGH FIFTH YEARS SEALED SYSTEM COVERAGE: During the 2nd through 5th years after the date of purchase, we will repair (to include labor) any refrigerant leaks caused by defects in workmanship or material of a unit, and will repair or replace (to include labor) any portion of the evaporator coil, condenser coil, compressor, reversing valves or connecting tubing that proves to be defective, in workmanship or materials.
26″ Cool Only
PBC092G00CC
Type: 26″ Cool Only
Voltage: 115
BTU (Cool): 9,300
CEER: 9.7
PBC093G00CC
Type: 26″ Cool Only
Voltage: 230/208
BTU (Cool): 9,100/9,300
CEER: 9.7
PBC122G00CC
Type: 26″ Cool Only
Voltage: 115
BTU (Cool): 11,800
CEER: 9.7
PBC123G00CC
Type: 26″ Cool Only
Voltage: 230/208
BTU (Cool): 11,800/12,000
CEER: 9.7
26″ Electric Heat/Cool
PBE093G35CC
Type: 26″ Heat/Cool
Voltage: 230/208
BTU (Cool): 9,100/9,300
BTU (Heat): 9,000/11,000
CEER: 9.7
PBE123G35CC
Type: 26″ Heat/Cool
Voltage: 230/208
BTU (Cool): 11,800/12,000
BTU (Heat): 9,000/11,000
CEER: 9.7
26″ Heat Pump
PBH092G12CC
Type: 26″ Heat Pump
Voltage: 230/208
BTU (Cool): 9,000
BTU (Heat): 3,900
BTU (Heat Pump):
8,500
CEER: 9.7
PBH073G35CC
Type: 26″ Heat Pump
Voltage: 230/208
BTU (Cool): 7,200/7,400
BTU (Heat): 9,000/11,000
BTU (Heat Pump): 6,600/6,800
CEER: 10.4
PBH093G35CC
Type: 26″ Heat Pump
Voltage: 230/208
BTU (Cool): 8,700/9,000
BTU (Heat): 9,000/11,000
BTU (Heat Pump): 8,600/8,800
CEER: 9.6
PBH113G35CC
Type: 26″ Heat Pump
Voltage: 230/208
BTU (Cool): 11,100/11,500
BTU (Heat): 9,000/11,000
BTU (Heat Pump): 11,200/11,400
CEER: 9.5
| Item Number | Description |
|---|---|
| AE093G35AX | AMANA HEAT/COOL RAC, 208/230V, 20 AMP, 8700/9000 COOL BTUH, 8500/10700 ELECT HEAT BTUH, 10 CEER |
| AE123G35AX | AMANA HEAT/COOL RAC, 208/230V, 20 AMP, 11200/11600 COOL BTUH, 8500/10700 ELECT HEAT BTUH, 10 CEER |
| AE183G35AX | AMANA HEAT/COOL RAC, 208/230V, 20 AMP, 17200/17600 COOL BTUH, 9000/11000 ELECT HEAT BTUH, 9.7 CEER |
| AH093G35AX | AMANA HEAT PUMP RAC, 208/230V, 20 AMP, 8700/9000 COOL BTUH, 8500/10700 ELECT HEAT, 7200/7500 HEAT PUMP BTUH 10 CEER |
| AH123G35AX | AMANA HEAT PUMP RAC, 208/230V, 20 AMP, 11200/11600 COOL BTUH, 8500/10700 ELECT HEAT BTUH, 9900/10200 HEAT PUMP BTUH 9.5 CEER |
| AH183G35AX | AMANA HEAT PUMP RAC, 208/230V, 20 AMP, 17000/17300 COOL BTUH, 9000/11000 ELECT HEAT BTUH, 14000/14300 HEAT PUMP BTUH 9 CEER |
| PBC092G00CC | AMANA 26" COOL ONLY TTW, 115V, 15 AMP, 9300 COOL BTUH, 9.7 CEER |
| PBC122G00CC | AMANA 26" COOL ONLY TTW, 115V, 15 AMP, 11800 COOL BTUH, 9.7 CEER |
| PBC093G00CC | AMANA 26" COOL ONLY TTW, 208/230V, 15 AMP, 9100/9300 COOL BTUH 9.7 CEER |
| PBC123G00CC | AMANA 26" COOL ONLY TTW, 208/230V, 15 AMP, 11800/12000 COOL BTUH, 9.7 CEER |
| PBE093G35CC | AMANA 26" HEAT/COOL TTW, 208/230V, 20 AMP, 9100/9300 COOL BTUH, 9000/11000 ELECT HEAT BTUH, 9.7 CEER |
| PBE123G35CC | AMANA 26" HEAT/COOL TTW, 208/230V, 20 AMP, 11800/12000 COOL BTUH, 9000/11000 ELECT HEAT BTUH, 9.7 CEER |
| PBH092G12CC | AMANA 26" HEAT PUMP TTW, 115V, 15 AMP, 9000 COOL BTUH, 3900 ELECT HEAT BTUH, 8500 HEAT PUMP BTUH, 9.7 CEER |
| PBH073G35CC | AMANA 26" HEAT PUMP TTW, 208/230V, 20 AMP, 8700/9000 COOL BTUH, 9000/11000 ELECT HEAT BTUH, 6600/6800 HEAT PUMP BTUH, 10.4 CEER |
| PBH093G35CC | AMANA 26" HEAT PUMP TTW, 208/230V, 20 AMP, 8700/9000 COOL BTUH, 9000/11000 ELECT HEAT BTUH, 8600/8800 HEAT PUMP BTUH, 9.6 CEER |
| PBH113G35CC | AMANA 26" HEAT PUMP TTW, 208/230V, 20 AMP, 11100/11500 COOL BTUH, 9000/11000 ELECT HEAT BTUH, 11200/11400 HEAT PUMP BTUH, 9.5 CEER |
