GE Zoneline Vertical Terminal Air Conditioners (also referred to as ZVAC)
A Vertical Terminal Air Conditioners (VTAC) provide a home-like appearance to your room, quieter operation and a wall thermostat that helps guests feel right at home. Rather than a traditional PTAC or TTW a/c unit, VTACs do not need to be mounted under or near a window. It is still a through-the-wall, packaged terminal unit, but instead of being 42″ wide and installed in under the window in the middle of the room, it has a vertical configuration and is installed in a closet-like corner enclosure. Curtains can hang all the way to floor and it makes more room design options available.
They are designed as an alternative to large, expensive central systems with none of the location restrictions of a traditional window unit. Because the unit is ducted, it can serve a single room or multiple rooms – thus giving you the cost benefit of package terminal units with the aesthetics, quieter operation and flexibility of a central system.
You can find these units in hotels, extended stays, assisted living facilities and multi-family/apartment communities.
LIMITED ONE-YEAR WARRANTY: 1-year parts and labor warranty.
LIMITED FIVE-YEAR WARRANTY: 2 – 5 year warranty on the entire sealed refrigerating system. 2 – 5 year limited warranty on any certain parts* should they fail due to a defect in materials or workmanship. Full Warranty
General Electric Transition Kits Allow You to Replace Any Existing VTAC
With GE Transition kits you can replace most VTAC brands. Allied Appliance also carries VTACs from Islandaire, Friedrich, Amana and First Co. Request a Quote to learn more.
NEW GE Zoneline Heat Pump VTAC with Inverter
GE Zoneline 12,000 BTU Heat Pump, Single Package Vertical Air Conditioner, Range of 5,200 - 16,200 BTUs
Model #: AZ9VH12DAC (208/230 V)
Model #: AZ9VH12EAC (265 V)
Heat Pump with Inverter Model
12,000 BTU Class
Range of 5,200 – 16,200 BTUs
FREE SHIPPING ON 8 OR MORE GE UNITS!
FEATURES
- Insta-Platform™- Eliminates the need for on-site customized platform construction saving time and money.
- Self-Contained Drainage System – Easy installation allows for simple chassis removal while leaving plumbing completely intact.
- Fast-Connect Plumbing – Allows preliminary plumbing to be installed outside the closet and prior to installing the chassis.
- Self-Aligning Lock-in-Place System – The Insta-Platform and the VTAC are self-aligning with a lock-in-place system ensuring the unit is engaging with the plenum gasket.
- Quick-Install Plenum – Plenum is easily installed from the interior of building, without the need for exterior building access. Caulking is required. It conveniently expands from 8″ to 15″ for a custom fit.
- Inverter Technology – Variable speed operation provides an advantage with shorter recovery time, improved efficiency, sound quality and dehumidification. Consistent room temperature allows for total room comfort.
- Ultra-Quiet – Delivers quiet cooling power with a smooth sound for a good night’s sleep.
- Onboard Diagnostics – Electronic controls give clear and fast diagnostics data and fault codes, for fast and easy resolution.
- SmartHQ™ WiFi Capability – Optional SmartHQ module* gives property managers the ability to monitor multiple units remotely, enhancing guests’ experience. Learn more at smarthqsolutions.com/management (*SmartHQ module part number PBX23W00Y0 or PBX23W00Y1).
- Reverse Cycle Defrost – The variable speed compressor and advanced defrost capability allow for the best heat pump operation down to 0° F.
- Anti-Corrosion Design/Premium Guard Seacoast Protection – Exclusive rust-proof basepan and bulkhead provide another level of corrosion protection to ensure lasting performance in challenging environments.
SPECS & DETAILS
Dimensions: 23.625″ W x 24.125″ D x 31.875″ H
Net Weight: 125 Ibs.
Capacity
CFM Indoor Fan High: 465
CFM Indoor Fan Low: 380
Cooling BTUH (MAX): 16200
Cooling BTUH (MIN): 5200
Cooling EER2 (BTUH / Watt): 12 (AZ9VH12DAC), 11.6 (AZ9VH12EAC)
Dehumidification (pts./hr.): 3.16
Heating – Reverse Cycle – BTUH: 11500
Power / Ratings
Cooling – Amperes: 4.7 (AZ9VH12DAC), 4.2 (AZ9VH12EAC)
Cooling – Watts: 970 (AZ9VH12DAC), 1050 (AZ9VH12EAC)
Heating – Reverse Cycle – Amps: 4.4 (AZ9VH12DAC), 3.8 (AZ9VH12EAC)
Heating – Reverse Cycle – Watts: Yes
Voltage (MAX): 230 (AZ9VH12DAC), 265 (AZ9VH12EAC)
WARRANTY
Warranty Notes: See written warranty for full details
Labor Warranty: Limited 1-Year Warranty | Limited 5-Year Warranty, Sealed Refrigerating System
Parts Warranty: Limited 2-5 Year Warranty
ACCESSORIES REQUIRED FOR INSTALLATION
Accessories required for new installations (if not existing):
Outdoor Grille: RAVAL3
Wall Plenum: RAVWPT9, RAVWPT15
Drain Platform: RAVDPLAT
Return Air Grille: RAVRG4, RAVRG2B

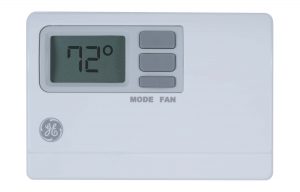

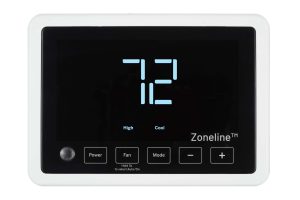

Wall Thermostat: RAK190V, RAK150VF2
Power Connection Kit: RAK3XXD Series (AZ9VH12DAC), RAK5XXD Series (AZ9VH12EAC)
MANUALS / DOWNLOADS
Model #: AZ9VH12DAC (208/230 V)
Quick Specs
Product Sheet
Model #: AZ9VH12EAC (265 V)
Quick Specs
Product Sheet
GE Zoneline Heat Pump VTAC Inverter Model with Make-Up Air
GE Zoneline UltimateV12™ 12,000 BTU Heat Pump, Single Package Vertical Air Conditioner with Make-Up Air
Model #: AZ9VH12DBM (208/230 V)
Model #: AZ9VH12EBM (265 V)
FREE SHIPPING ON 8 OR MORE GE UNITS!
FEATURES
- Insta-Platform™- Eliminates the need for on-site customized platform construction saving time and money.
- Self-Contained Drainage System – Easy installation allows for simple chassis removal while leaving plumbing completely intact.
- Fast-Connect Plumbing – Allows preliminary plumbing to be installed outside the closet and prior to installing the chassis.
- Self-Aligning Lock-in-Place System – The Insta-Platform and the VTAC are self-aligning with a lock-in-place system ensuring the unit is engaging with the plenum gasket.
- Quick-Install Plenum – Plenum is easily installed from the interior of building, without the need for exterior building access. Caulking is required. It conveniently expands from 8″ to 15″ for a custom fit.
- Inverter Technology – Variable speed operation provides an advantage with shorter recovery time, improved efficiency, sound quality and dehumidification. Consistent room temperature allows for total room comfort.
- Ultra-Quiet – Delivers quiet cooling power with a smooth sound for a good night’s sleep.
- Onboard Diagnostics – Electronic controls give clear and fast diagnostics data and fault codes, for fast and easy resolution.
- SmartHQ™ WiFi Capability – Optional SmartHQ module* gives property managers the ability to monitor multiple units remotely, enhancing guests’ experience. Learn more at smarthqsolutions.com/management (*SmartHQ module part number PBX23W00Y0 or PBX23W00Y1).
- Reverse Cycle Defrost – The variable speed compressor and advanced defrost capability allow for the best heat pump operation down to 0° F.
- Anti-Corrosion Design/Premium Guard Seacoast Protection – Exclusive rust-proof basepan and bulkhead provide another level of corrosion protection to ensure lasting performance in challenging environments.
SPECS & DETAILS
Dimensions: 23.625″ W x 24.125″ D x 31.875″ H
Net Weight: 125 Ibs.
Capacity
CFM Indoor Fan Medium: 417
CFM Indoor Fan Low: 376
Cooling BTUH (MAX): 12100
Cooling EER (BTUH / Watt): 11.6
Dehumidification (pts./hr.): 3.16
Heating – Reverse Cycle – BTUH: 11400
Power / Ratings
Cooling – Amperes: 4.7 (AZ9VH12DBM), 3.9 (AZ9VH12EBM)
Cooling – Watts: 1040
Heating – Reverse Cycle – Amps: 4.3
Heating – Reverse Cycle – Watts: 925
Voltage (MAX): 230 (AZ9VH12DBM), 265 (AZ9VH12EBM)
WARRANTY
Warranty Notes: See written warranty for full details
Labor Warranty: Limited 1-Year Entire Appliance | Limited 5-Year Sealed Refrigerating System
Parts Warranty: Limited 1-Year Entire Appliance | Limited 5-Year Parts | Limited 5-year Sealed Refrigerating System
ACCESSORIES REQUIRED FOR INSTALLATION
Accessories required for new installations (if not existing):
Outdoor Grille: RAVAL3
Wall Plenum: RAVWPT15 or RAVTRANS2, 3, 4
Drain Platform: RAVDPLAT
Return Air Grille: RAVRG4, RAVRG2
Wall Thermostat: RAK149F2, RAK149P2, RAK180W1
Power Connection Kit: RAK3XXD Series
MANUALS / DOWNLOADS
Quick Specs
Product Sheet
Model #: AZ9VH12EBM (265 V)
Quick Specs
Product Sheet
GE Zoneline Heat/Cool Resistance Heat VTAC
GE Zoneline UltimateV10™ Cool/Electric Resistance Heat Vertical AZ95 Series Air Conditioner, 208/230 V
- Insta-Platform™- One-piece design fully integrates with the wall plenum and aligns for a tight seal. Eliminates need for a customized platform construction on site.
- Self-Contained Drainage System – Easy installation and simple chassis removal while leaving plumbing completely intact.
- Fast-Connect Plumbing – Thoughtful design enables platform build and rough plumbing completed in only minutes.
- Self-Aligning Lock-in-Place System – Perfect fit and mistake proof when the chassis is placed on the platform.
- Quick-Install Plenum -Plenum is easily installed from the interior of building, without the need for exterior building access (caulking required).
AZ95E09DAC - 9,000 BTU
Model #: AZ95E09DAC
Dimensions: 31.875″ W x 24.125″ D x 23.625″ H
Net Weight: 116 Ibs.
Capacity
CFM Indoor Fan Medium: 408
CFM Indoor Fan Low: 305
Cooling EER (BTUH / Watt): 11.5
Dehumidification (pts./hr.): 2.2
Cooling BTUH (MIN): 9200
Power / Ratings
Cooling – Amperes: 3.6
Cooling – Watts: 795
Voltage: 208/230
Accessories Required For Installation
Outdoor Grille: RAVAL3
Wall Plenum: RAVWPT15 or RAVTRANS2, 3, 4
Drain Platform: RAVDPLAT
Return Air Grille: RAVRG4, RAVRG2
Wall Thermostat: RAK149F2, RAK149P2, RAK180W1
Power Connection Kit: RAK3XXD Series
AZ95E12DAC - 12,000 BTU
Model #: AZ95E12DAC
Dimensions: 31.875″ W x 24.125″ D x 23.625″ H
Net Weight: 120 Ibs.
Capacity
CFM Indoor Fan Medium: 408
CFM Indoor Fan Low: 356
Cooling EER (BTUH / Watt): 12.1
Dehumidification (pts./hr.): 2.8
Cooling BTUH (MIN): 11500
Power / Ratings
Cooling – Amperes: 4.3
Cooling – Watts: 940
Voltage: 208/230
Accessories Required For Installation
Outdoor Grille: RAVAL3
Wall Plenum: RAVWPT15 or RAVTRANS2, 3, 4
Drain Platform: RAVDPLAT
Return Air Grille: RAVRG4, RAVRG2
Wall Thermostat: RAK149F2, RAK149P2, RAK180W1
Power Connection Kit: RAK3XXD Series
AZ95E18DAC - 18,000 BTU
Model #: AZ95E18DAC
Dimensions: 31.875″ W x 24.125″ D x 23.625″ H
Net Weight: 133 Ibs.
Capacity
CFM Indoor Fan Medium: 468
CFM Indoor Fan Low: 408
Cooling EER (BTUH / Watt): 11.2
Dehumidification (pts./hr.): 4.5
Cooling BTUH (MIN): 17400
Power / Ratings
Cooling – Amperes: 7.3
Cooling – Watts: 1550
Voltage: 208/230
Accessories Required For Installation
Outdoor Grille: RAVAL3
Wall Plenum: RAVWPT15 or RAVTRANS2, 3, 4
Drain Platform: RAVDPLAT
Return Air Grille: RAVRG4, RAVRG2
Wall Thermostat: RAK149F2, RAK149P2, RAK180W1
Power Connection Kit: RAK3XXD Series
GE Transition Kits for VTACs

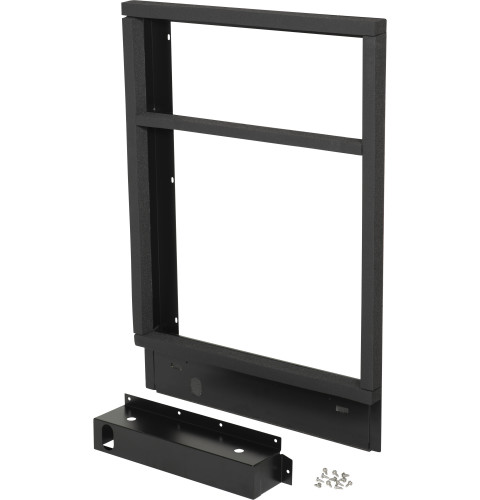

VTAC Transition Plenum for AZ75/85 to AZ95
Model #: RAVTRANS2
Fully Integrated Solution for most Islandaire VTAC plenums
Works with GE AZ7585 to AZ95 models
Transitions from existing AZ75/AZ85 plenum to AZ95 unit

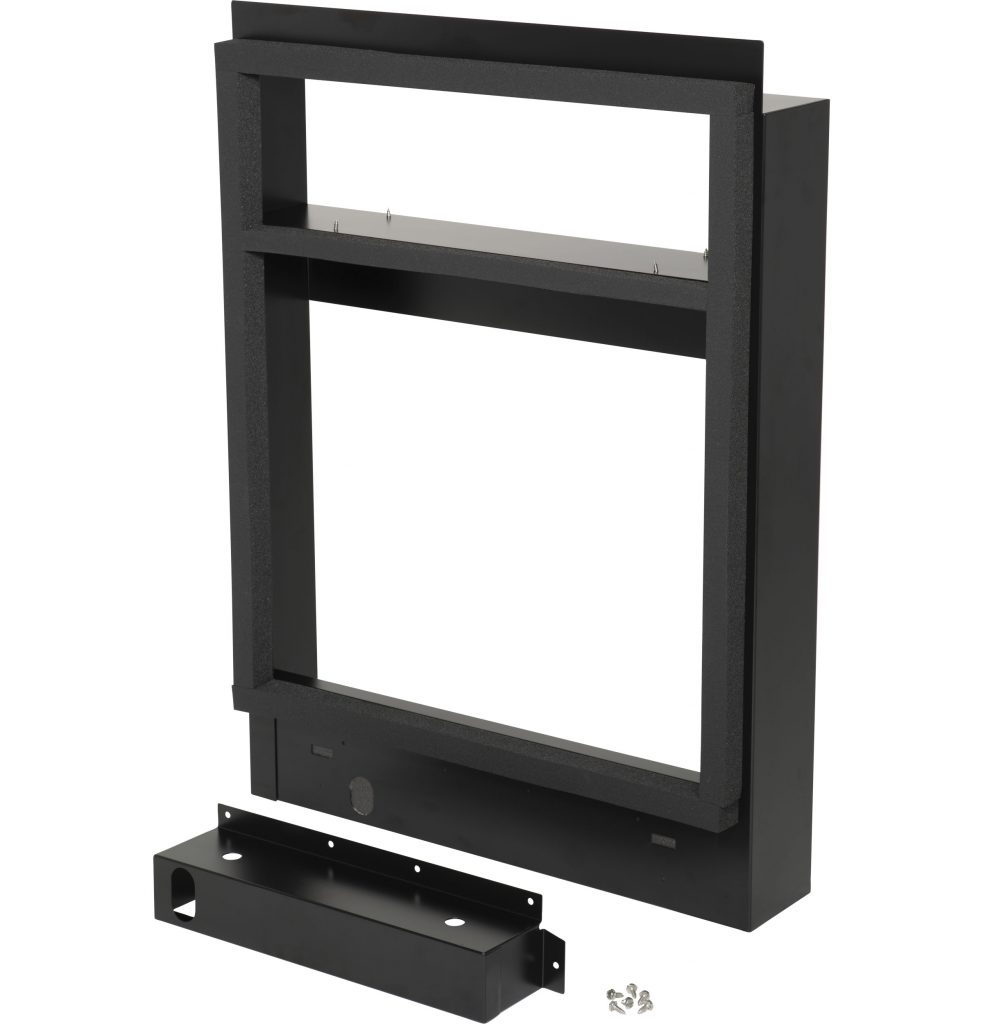

VTAC Transition Plenum for AZ90/91 to AZ95, 8" or More Plenum Depth
Model #: RAVTRANS3
Fully Integrated Solution for most Friedrich and Amana VTAC plenums
Works with AZ90/91 to AZ95 models
Transitions from existing RAVWPT8 wall plenum used with AZ90/AZ91 series

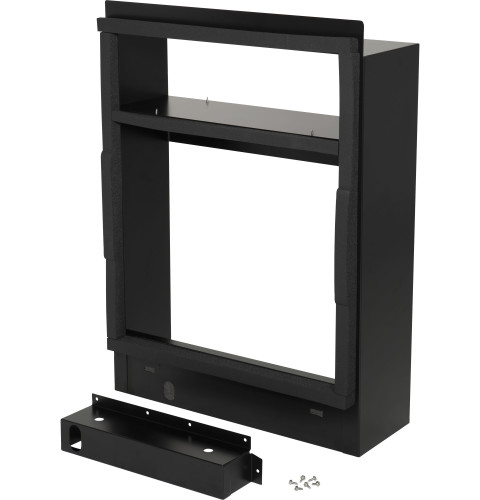

VTAC Transition Plenum for AZ90/91 to AZ95, 8" or More Plenum Depth
Model #: RAVTRANS4
Fully Integrated Solution for most Friedrich and Amana VTAC plenums
Works with AZ90/91 to AZ95 models
Transitions from existing RAVWPT14 wall plenum used with AZ90/AZ91 series

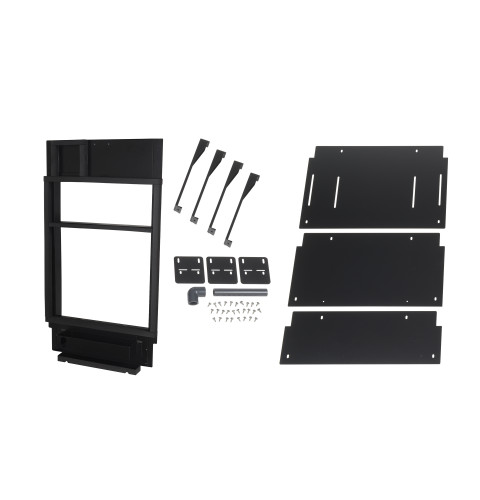

VTAC Transition Plenum for V10, V11 & V12 Series
Model #: RAVTRANS1CO
Fully Integrated Solution for most First Co. and Amana VTAC plenums
Works with V10, V11 and V12 models
Includes all necessary hardware except RAVDPLAT to be ordered separately
Drain plumbing included
Make up Air Ready with optional Make up Air Port for V12 models
Heavy duty galvanized steel powder coated construction and UL listed
Designed to work with 1st Company and Amana plenums that are 21 ⅜” W x 43 ¾” H x 5″ to 20″ deep
Wall Thermostats for VTACs
Model #: RAK149F2
Wall Thermostat – Non-Programmable
- 24V AC digital remote wall thermostat
- Works with a single-stage cooling and single-stage or 2-stage heating systems
- Requires 7-wire hookup
Model #: RAK160W2
Wireless Thermostat
- Wireless Thermostat with wired power option
- Plug and Play with all AZ45/65/95 and AJE/AJH models
- 2 Fan speeds
Model #: RAK149P2
Wall Thermostat – Programmable
- 24V AC digital remote wall thermostat
- Programmable for 7-day or 5+2 day programs
- Works with a single-stage cooling and single-stage or 2-stage heating systems
Model #: RAK180W1
Energy Management Occupancy Sensing Wireless Thermostat
- Intelligent occupancy analysis Using a built-in occupancy sensor, differentiates between incidental and guest occupancy to completely eliminate unnecessary energy use
- Can be installed to be powered wired or wirelessly (via batteries)
- Make up air control with occupancy
- Night occupancy mode Disables energy management while guests sleep
- Precise temperature control
- Integrated wireless networking
- Easy to use interface
- Large LCD screen with automatic backlight
- Easy plug and play installation via quick connector
All GE Zoneline VTACs Feature:
- Excellent efficiency and dehumidification
- Unique sleeve design for easier installation and service
- Three-way slide-out chassis service/maintenance flexibility
- Electronic Temperature Limiting (requires room air temperature sensor accessory – RAVRMS)
- Freeze Sentinel™ (requires room air temperature sensor accessory – RAVRMS)
- Constant ON fan (required in nursing homes in some states)
- Permanently Lubricated Fan Motors
- Standard Size Air Filter
- Central Desk Control Capability
- Occupancy Sensor Interface
- Occupancy Sensor Interface
- HI and LOW fan speeds controlled by remote thermostat
- 3-Speed Indoor Fan Motor for selectable HI and LOW speeds
- Corrosion Protection Treatment Standard
- Slinger Ring Condensate Removal
- Indoor Frost Control
- Automatic Compressor Random Restart
- Compressor Restart Delay
- Quick Heat Recovery (On Heat Pump Units)
- Extended Heat Pump Operation
- Reverse Cycle Heat Pump Defrost
- Warranty (including both parts and labor)
